Introduction
The intelligent regulating valve can be adjusted dynamically according to the instructionsof the intelligent temperature control system, combined with sensor data and user needsaccording to different time periods and environmental changes. Accurately adjust the flowand temperature of heating water. Through the accurate control of the intelligent requlat.ing valve, the uniform distribution of indoor temperature and the optimization of energyconsumption can be achieved.
Reduce Carbon Emission and Improve Efficiency by 20%~40%
Features
| 1 | Remote setting,Remote control |
| 2 | Support inlet and return water temperature collection |
| 3 | Regular collection,Real-time monitoring |
| 4 | Ultra-low power consumption, battery life lasts for more than 6 years |
| 5 | Card swipe wake-up |
| 6 | Command mode, Mobile phone near-field communication |
| 7 | Intelligent scheduling |
| 8 | 4G wireless remote communication |
| 9 | V7-PLUS default upload 2 to 4 times a day during the day |
| 10 | Timed self-rotating switch valve |
Applied cases
In 2017, Sanzen Energy was authorized to implement this rectification project.
The project adopts ground source heat pump system for heat- ing and cooling
It can receive more than 500 students at the same time.
It is a grade 2A hospital, covering area of 54,669 ㎡and construction area of 60,091㎡

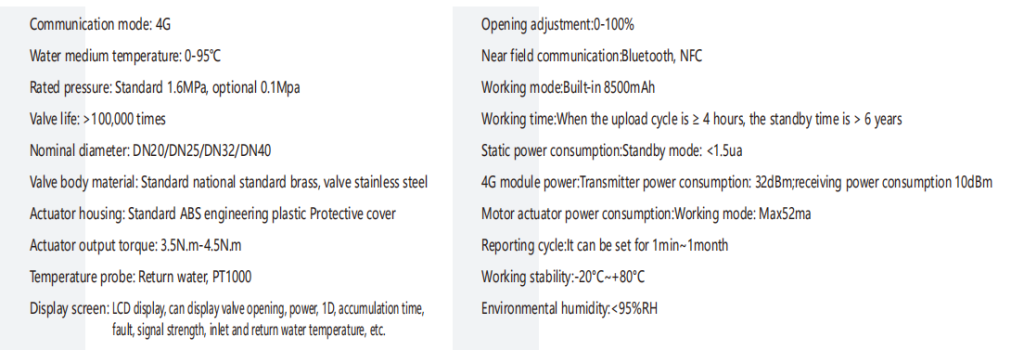

Technical Parameter
